API 675 Metering & Dosing Pumps

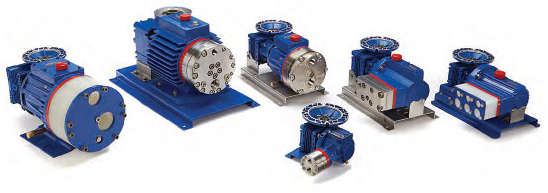

Hydra-Cell's MT8 and P series metering pumps are compact, economical pumps for high-performance measurements. When used in place of conventional metering pumps, MT8 and P series offer superior performance at lower costs and provide virtually pulsation-free linear flow.
Dosing pump technology has not changed much in recent years. As a result, conventional metering pumps have operational limitations and more serious consequences for financial costs. Hydra-Cell metering pumps are no ordinary metering pumps. Hydra-Cell metering pumps are manufactured in full compliance with API 675, thanks to their virtually flat linear flow, and the principle of diaphragm hydraulic balance, implemented by the KELL CELL plunger design, allows the pumps to operate in various abnormal situations (blocked inlet or outlet, etc.) without damage.
Taking advantage of state-of-the-art technology, Hydra-Cell's MT8 and P series metering pumps achieve high levels of accuracy, repeatability and linearity, while delivering precise and consistent flow rates. This revolution in metering uses the latest electronic flow control available to replace outdated, inaccurate stroke controls.
Hydra-Cell metering pumps of the MT8 and P series have the following characteristics:
- The Hydra-Cell pumps combine simple technical design with robust construction to ensure precise metering and dosing with virtually pulse-free flow.
- Thanks to the sealed pump chamber and hydraulically balanced diaphragm design, the pumps provide leak-free performance with low operating costs.
- The pumps are compact and economical, designed for high-performance dosing applications.
- Due to their simple design, Hydra-Cell® pumps successfully dispense crystallised liquids, operate in dry running mode, and are resistant to emergencies and human error.
- They are designed to be fully automated.
What are Hydra-Cell metering pumps?
Design features and advantages of Hydra-Cell dosing pumps
- Pumps are more precise. No manual stroke adjustment to cause inaccuracies, potential leakage and operator error
- Optimum accuracy. Full stroke - every stroke.
- Linear flow. Multiple diaphragms reduce pulsation and acceleration losses.
- A variety of flows and pressures. Same piston, flow path and diaphragm size.
- Compact. Significantly smaller footprint than metering pumps with comparable performance.
- High repeatability. The filling valve in the piston assembly ensures optimum oil flow on every stroke to ensure consistent accuracy.
- Easy maintenance. Simple, clean oil drain plug for oil changes.
- Less chance of air ingress. Larger ports than usual to eliminate common problems with gas flow measurement.
Flow Range: up to 2 808 l/min
Temperature: up to 121 °С
Pressure: up to 172 bar
Solids: 800 microns
Materials: bronze, cast iron, Hastelloy C, polypropylene, PVDF, stainless steel 316L
This equipment includes
Industry sectors
- Petrochemical industry
- Building
- Pharmaceutical
- Confectionery
- Surface treatment
- Mining
- Chemical
- Fruit concentrates
- Heating, water supply and sewage
- Water treatment
- Pet food
- Offshore
- Gas terminal
- Beauty and personal care
- Paper
- Power generation
- Engineering
- Bakery
- Fertiliser
- Сleaning water
- Meat processing
- Research and development
- Detergents
- Brewing & beverages
- Emulsions
- Maritime
- Agriculture
- Food industry
- Oil and Gas
- Aviation
- Paint and surface coating
- Ceramics
- Oil refineries
- A-plants
- Paints and resins
- Glue
Applications
- Mixing
- Discharge
- Measuring
- Dosing
- Filtration
Processed substance
- Hygienic liquids
- Redox
- Acids
- Aliminium oxid slurry
- Biological broths and slurries
- Separated oil processing
- Ferric chloride
- Clay
- Low viscosity liquids
- Adhesives
- Water hardness
- Bitumen
- Lake water
- Sensitive and viscous liquids
- Glycol
- Liquid CO2
- Corrosive dyes
- Thermal oil
- Lime
- Cooling water
- Alkalis
- Diesel fuel oil
- Solvents
- Cryogenic liquids
- Thixotropic fluids
- High viscosity fluids
- Vinegar
- Biodiesel
- Fertilisers
- Vegetable oils
- Crystalline slurry
- Toxic liquids
- High temperature oils
- Drinking water
- Lime milk
- Emulsions
- Synthetic fibers
- Latex
- Тoluene
- Viscose
- Dye pigments
- Epoxy paint
- Sulphuric acids
- Light fluids
- Thin liquids
- Water
- Foam protein
- Cereals
- Hydrochloric acid
- Abrasive liquids
- Soaps and detergents
- Ultra pure water
- Carbon fibers
- Surface water
- LPG
- Sauces
- Ammonia
- Seawater
- Paints
- Viscous liquids
- Process condensate
- Irrigation water
- Silver nitrate
- Acetate
- Non-Newtonian fluids
- Phosphoric acid
- Gels
- Radio active fluids
- Caustic solutions
- Sewage
- Concrete
- Low NPSH
- Refrigerants
Features
- Pulse-less
- Compact
- Rugged
- High system pressure
- Seal-less
Certificates
- ATEX
- CE
- DNV
- EAC
- ISO 9001
- ISO 14001
- DeliveryWe guarantee a prompt and reliable delivery of pumping equipment to any part of the country.
- InstallationWe guarantee a high quality installation work, which ensures optimal and safe operation of the pumping equipment.
- WarrantyWe provide an extended warranty period for all pumping equipment, which indicates its high quality and reliability.
Why us
7 reasons to buy Hydra-Cell metering and dosing pumps at ASCO PUMPS
- Efficiency - meets API 675 standards for linearity, repeatability and static accuracy.
- Precise - accurate in volume per stroke, almost independent of pressure.
- Cost-effective - virtually pulse-free flow, eliminating the need for pulsation dampeners.
- 100% leak-proof - seal-free design for leak-free operation.
- Reduced maintenance costs - can operate without damage for a long time.
- Easy to control - flow rate is directly proportional to the input shaft speed.
- Flexibility - handles abrasive and solid particles, high and low viscosity liquids, shear sensitive liquids, as well as non-lubricating and aggressive liquids.
